StemExtractor: hip stem extraction tool
The StemExtractor is a proven surgical instrument for total hip replacement femoral components that should be available in every revision surgery.
Revision operations are safer and better when scheduled with this instrument.
- Only a few steps necessary for safe fixation of the instrument to the neck of the prosthesis
- Axial force transfer and stable clamping force by patented system
- Transfer of clamping force along a curved tool head to the prosthesis cone
- Minimized size of the instrument head, designed for limited space conditions
- Efficient, rational and cost-saving surgical operations
- Since 1993 successfull in clinical use
- Complete decomposability of the instrument without additional tools
- Easy and validated instrument reprocessing
Technical specifications.
- Cone size from 8 mm to 16 mm possible with clamps
- Slide hammer weight: 1.0 kg - on demand 1.7 kg
- Total weight: 2.2 kg
- Total length: 550 mm
- Driving distance: 280 mm
| Options | All our systems are also available as a loan system. Ask us! | ||||
 |
|||||
| Pos. | Art. no. | Description | |||

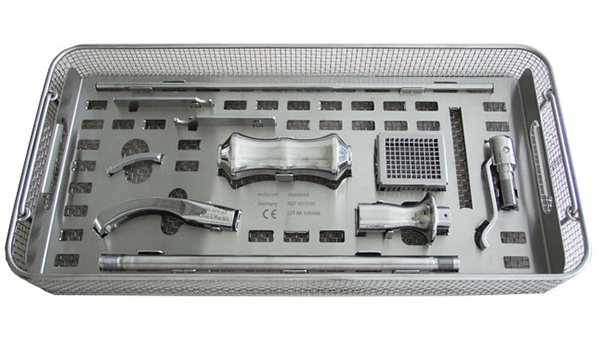

| 1 | 780500 | Hip stem extractor STANDARD Set Professional Main instrument STANDARD length 550 mm, with system tray (sieve insert and basket) |
|||
| 2 | 780600 | Hip stem extractor STANDARD Only main instrument STANDARD 550 mm |
|||
| 3 | 780520 | Hip stem extractor LONG Set Professional Main instrument LONG 635 mm, with system tray (sieve insert and basket) |
|||
| 4 | 780620 | Hip stem extractor LONG Only main instrument LONG 635 mm |
|||
| 5 | 780612 780604 |
Slide hammer weight 1.2 kg) Slide hammer weight 1.7 kg |
|||
| Single and spare parts | |||||
 |
|||||
| Pos. | Art. no. | Description | Pos. | Art. no. | Description |
| 1 | 780610 | Pressure rod AE ST | 7 | 780605 780607 780606 780603 |
Jamcase Lever Bolt with plastic insert Pin with screw |
| 2 | 780615 | Wrench R7 | 8 | 780601 | Head of tool |
| 3 | 780614 | Wrench R11 | 9 | 780613 | Handpiece ST2 |
| 4 | 780602 | Sliding spacer U | 10 | 780611 | Guiding tube AE ST |
| 5 | 780612 | Striking weight 1 kg | 11 | 801037 | Stem extractor tray insert |
| 6 | 780616 | Allen key | 12 | 801001 | Tray 1/1 size Aesculap, 60 mm |
